Data Joining

Lecture 7

May 23, 2025

Announcements/Reminders

  • Office hours are today from 1:00-3:00 on Zoom

  • AE04… that was a lot

    • The first 3 parts that we did in class are what are important!

    • The rest is a good exercise in data vis.

  • Questions about lab?

Outline

  • Last Time: Started learning about data transformation!

  • Today:

    • Review from last time

    • Joining data (working with multiple data frames)

Review: Pivot Longer

How do we go from this…

# A tibble: 4 × 6
  degree `2011` `2012` `2013` `2014` `2015`
  <fct>   <dbl>  <dbl>  <dbl>  <dbl>  <dbl>
1 AB2        NA      1     NA     NA      4
2 AB          2      2      4      1      3
3 BS2         2      6      1     NA      5
4 BS          5      9      4     13     10

…to this?

# A tibble: 56 × 3
  degree  year     n
  <fct>  <dbl> <dbl>
1 AB2     2011    NA
2 AB2     2012     1
3 AB2     2013    NA
4 AB2     2014    NA
5 AB2     2015     4
# ℹ 51 more rows

Reverse It: Pivot Wider

How do we get back to this…

# A tibble: 4 × 6
  degree `2011` `2012` `2013` `2014` `2015`
  <fct>   <dbl>  <dbl>  <dbl>  <dbl>  <dbl>
1 AB2        NA      1     NA     NA      4
2 AB          2      2      4      1      3
3 BS2         2      6      1     NA      5
4 BS          5      9      4     13     10

… from this?

# A tibble: 56 × 3
  degree  year     n
  <fct>  <dbl> <dbl>
1 AB2     2011    NA
2 AB2     2012     1
3 AB2     2013    NA
4 AB2     2014    NA
5 AB2     2015     4
# ℹ 51 more rows

Recap: Pivot Functions

Pivot longer…

data_set |>
  pivot_longer(
    cols = colums_to_move,
    names_to = "var_for_column_names",
    values_to = "var_for_values"
  )

… or wider

data_set |>
  pivot_wider(
    names_from = var_with_cols,
    values_to = var_with_vals
  )

Joining Data

Joining Data

What happens if we want information from two different data sets?

Joining Data: Sample Scenario

population
# A tibble: 217 × 3
   country              year population
   <chr>               <dbl>      <dbl>
 1 Afghanistan          2022    41129.
 2 Albania              2022     2778.
 3 Algeria              2022    44903.
 4 American Samoa       2022       44.3
 5 Andorra              2022       79.8
 6 Angola               2022    35589.
 7 Antigua and Barbuda  2022       93.8
 8 Argentina            2022    46235.
 9 Armenia              2022     2780.
10 Aruba                2022      106.
# ℹ 207 more rows

  • We want to know about population in different continents.

  • We could use mutate to create a continent variable, but that would be terrible….

Joining Data: Sample Scenario

population
# A tibble: 217 × 3
   country              year population
   <chr>               <dbl>      <dbl>
 1 Afghanistan          2022    41129.
 2 Albania              2022     2778.
 3 Algeria              2022    44903.
 4 American Samoa       2022       44.3
 5 Andorra              2022       79.8
 6 Angola               2022    35589.
 7 Antigua and Barbuda  2022       93.8
 8 Argentina            2022    46235.
 9 Armenia              2022     2780.
10 Aruba                2022      106.
# ℹ 207 more rows
continent
# A tibble: 285 × 4
   entity                code      year continent
   <chr>                 <chr>    <dbl> <chr>
 1 Abkhazia              OWID_ABK  2015 Asia
 2 Afghanistan           AFG       2015 Asia
 3 Akrotiri and Dhekelia OWID_AKD  2015 Asia
 4 Aland Islands         ALA       2015 Europe
 5 Albania               ALB       2015 Europe
 6 Algeria               DZA       2015 Africa
 7 American Samoa        ASM       2015 Oceania
 8 Andorra               AND       2015 Europe
 9 Angola                AGO       2015 Africa
10 Anguilla              AIA       2015 North America
# ℹ 275 more rows

Joining: Example Data

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

Joining: Left Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

left_join(df_X, df_Y)

id X Y
1 X1 Y1
2 X2 Y2
3 X3 NA

Joining: Left Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

left_join(df_X, df_Y)

id X Y
1 X1 Y1
2 X2 Y2
3 X3 NA

Joining: Right Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

right_join(df_X, df_Y)

id X Y
1 X1 Y1
2 X2 Y2
4 NA Y4

Joining: Right Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

right_join(df_X, df_Y)

id X Y
1 X1 Y1
2 X2 Y2
4 NA Y4

Joining: Full Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

right_join(df_X, df_Y)

id X Y
1 X1 Y1
2 X2 Y2
3 X3 NA
4 NA Y4

Joining: Full Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

right_join(df_X, df_Y)

id X Y
1 X1 Y1
2 X2 Y2
3 X3 NA
4 NA Y4

Joining: Inner Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

inner_join(df_X, df_Y)

id X Y
1 X1 Y1
2 X2 Y2

Joining: Inner Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

inner_join(df_X, df_Y)

id X Y
1 X1 Y1
2 X2 Y2

Joining: Semi Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

semi_join(df_X, df_Y)

id X
1 X1
2 X2

Joining: Semi Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

semi_join(df_X, df_Y)

id X
1 X1
2 X2

Joining: Anti Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

anti_join(df_X, df_Y)

id X
3 X3

Joining: Anti Join

df_X

id X
1 X1
2 X2
3 X3

df_Y

id Y
1 Y1
2 Y2
4 Y4

anti_join(df_X, df_Y)

id X
3 X3

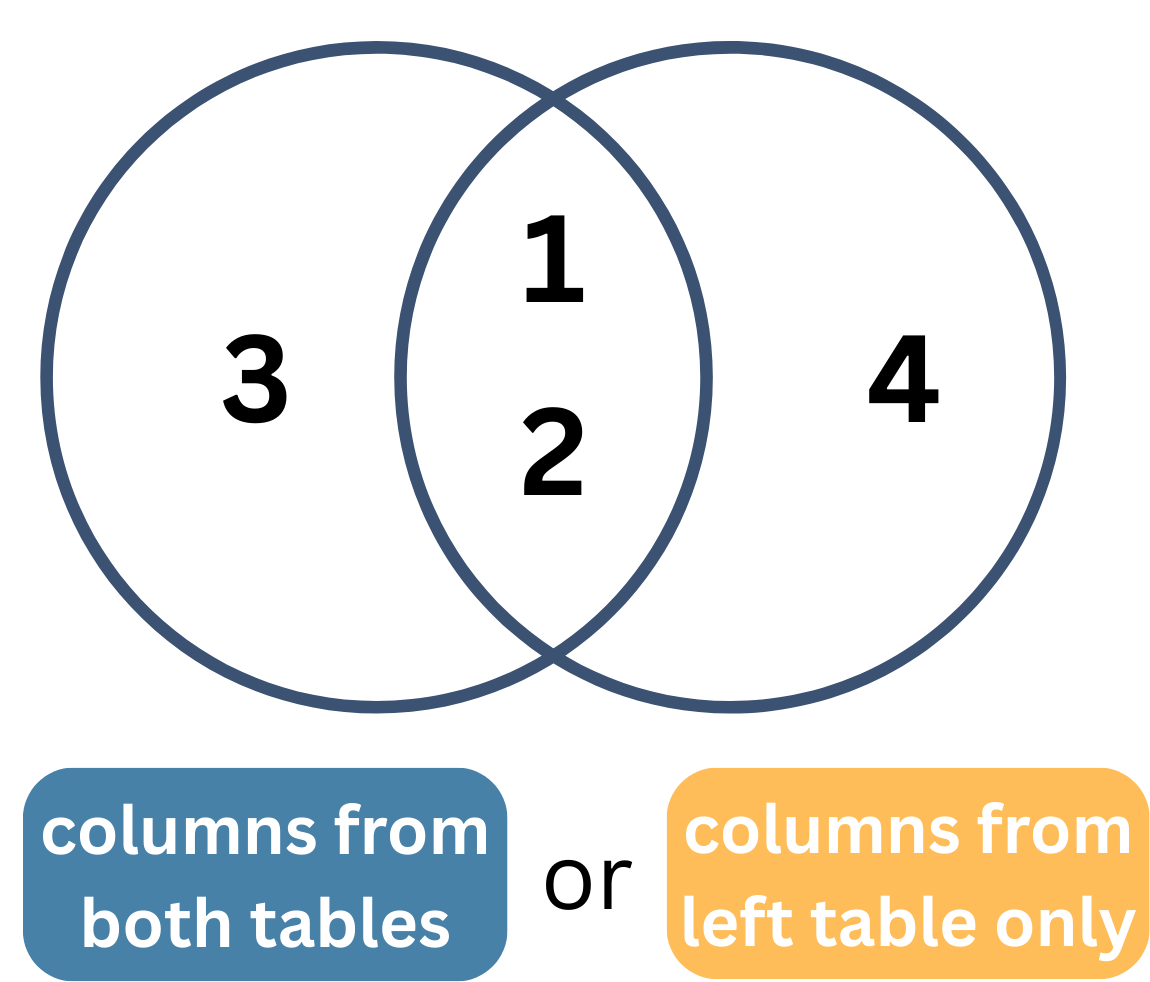

Summary of Join Types

More Notes on Join

  • In the following examples, I use left_join()

  • The same concept holds for other types of joins!

  • Idea: how do we specify which columns we want to join with?

Join: Which columns?

How can I specify which column to join by?

df_X

id_X X
1 X1
2 X2
3 X3

df_Y

id_Y Y
1 Y1
2 Y2
4 Y4

goal: left join

id_X X Y
1 X1 Y1
2 X2 Y2
3 X3 NA
left_join(df_X, df_Y,
          by = join_by(id_X == id_Y))

What about the pipe?

The following two pieces of code are equivalent:

left_join(df_X, df_Y,
          by = join_by(id_X == id_Y))



df_X |> left_join(df_Y,
                  by = join_by(id_X == id_Y))

Let’s save!

Most often, you will want to save the result of a join to a new data frame.

df_X_Y <- df_X |> left_join(df_Y,
                            by = join_by(id_X == id_Y))

Your Turn

What is the result?

AE 07

Goal: Do a join!!!

Data

population
# A tibble: 217 × 3
   country              year population
   <chr>               <dbl>      <dbl>
 1 Afghanistan          2022    41129.
 2 Albania              2022     2778.
 3 Algeria              2022    44903.
 4 American Samoa       2022       44.3
 5 Andorra              2022       79.8
 6 Angola               2022    35589.
 7 Antigua and Barbuda  2022       93.8
 8 Argentina            2022    46235.
 9 Armenia              2022     2780.
10 Aruba                2022      106.
# ℹ 207 more rows
continent
# A tibble: 285 × 4
   entity                code      year continent
   <chr>                 <chr>    <dbl> <chr>
 1 Abkhazia              OWID_ABK  2015 Asia
 2 Afghanistan           AFG       2015 Asia
 3 Akrotiri and Dhekelia OWID_AKD  2015 Asia
 4 Aland Islands         ALA       2015 Europe
 5 Albania               ALB       2015 Europe
 6 Algeria               DZA       2015 Africa
 7 American Samoa        ASM       2015 Oceania
 8 Andorra               AND       2015 Europe
 9 Angola                AGO       2015 Africa
10 Anguilla              AIA       2015 North America
# ℹ 275 more rows
